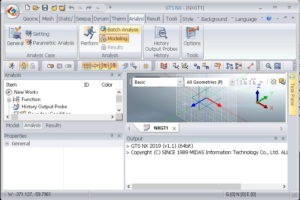

Midas GTS NX 2019

Analysis

1.1 Construction Stage new analysis types:

– Heat Transfer, Thermal Stress, Seepage-Heat Stress

1.2 Soft Soil Creep – Tensile Strength

1.3 Analysis Settings update

1.4 Interface Relative Displacement result output request

1.5 Nonlinear Time History/SRM – Analysis Case update

GTS NX 2019 Enhancements GTS NX 2019(v1.1) Release Notes
1. Analysis
1.1 New Heat Transfer, Thermal Stress, Seepage-Thermal Stress analysis types (Construction Stage)

1. Analysis
1.3 Analysis Settings
– Initial Parameters and Water Parameters has been moved to different tabs.
– Additional Water Parameters has been added for thermal analyses purposes: Conductivity of Water/Ice, Specific
Heat of Water, Latent Heat of Water
– Units of Energy (cal, kcal, J, Btu, kJ) has been added at Unit System toolbar.
1.4 Strain – Interface Relative Displacement result output request
– Interface Relative Displacement result will be printed when Strain option will be checked (Output Control).
It is the element result according to the traction concept of the interface element, and all the Total / Plastic results are
made to follow the ‘Strain’ option.

Pre/Post Processing

2.1 Material/Property/Contact thermal properties

2.2 Layer Control tool

2.3 Result History Output Probes, History Graph

2.4 Flow path

2.5 Slice plane vector

2.6 GTS NX Gen Civil result exchange

2.7 Load Table Import/Export

Product: Midas GTS NX 2019
Version: 2019
Supported Architectures: x64
Language: english
Supported Operating Systems: Windows 7even or newer
Size: 1DVD
